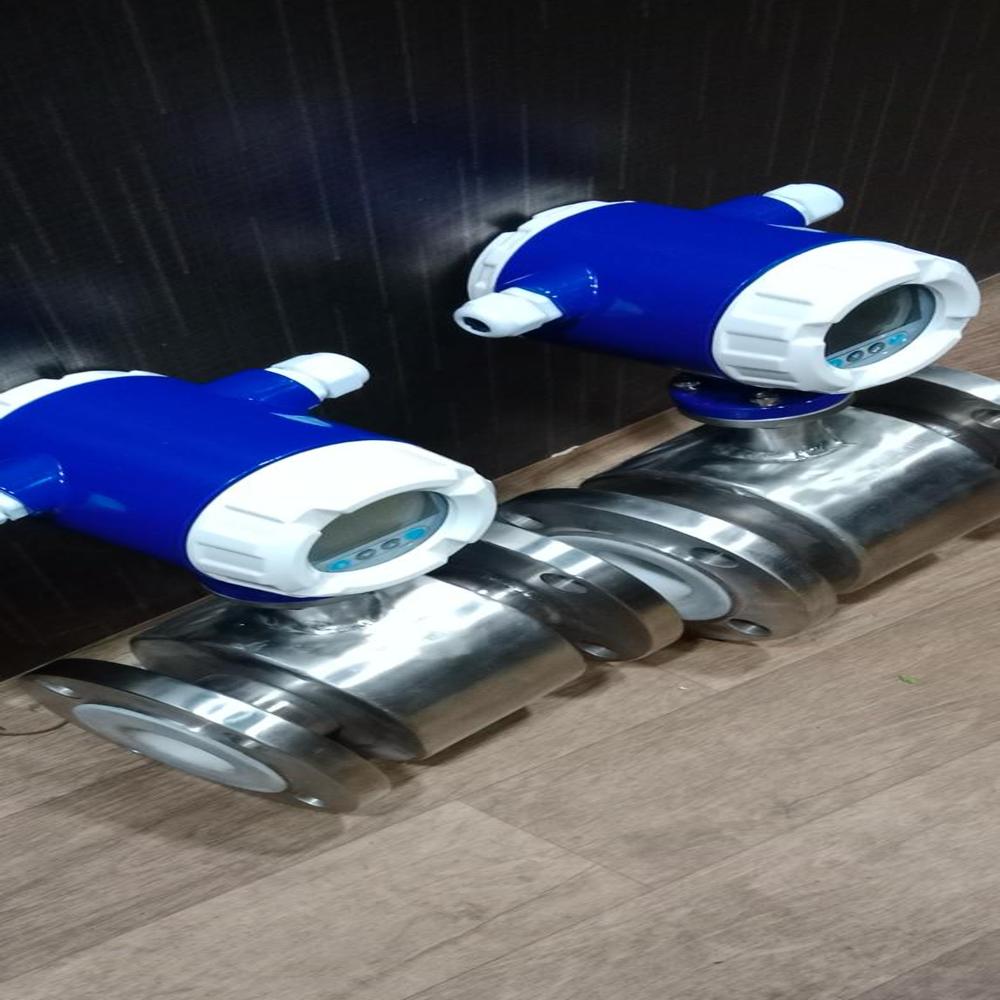

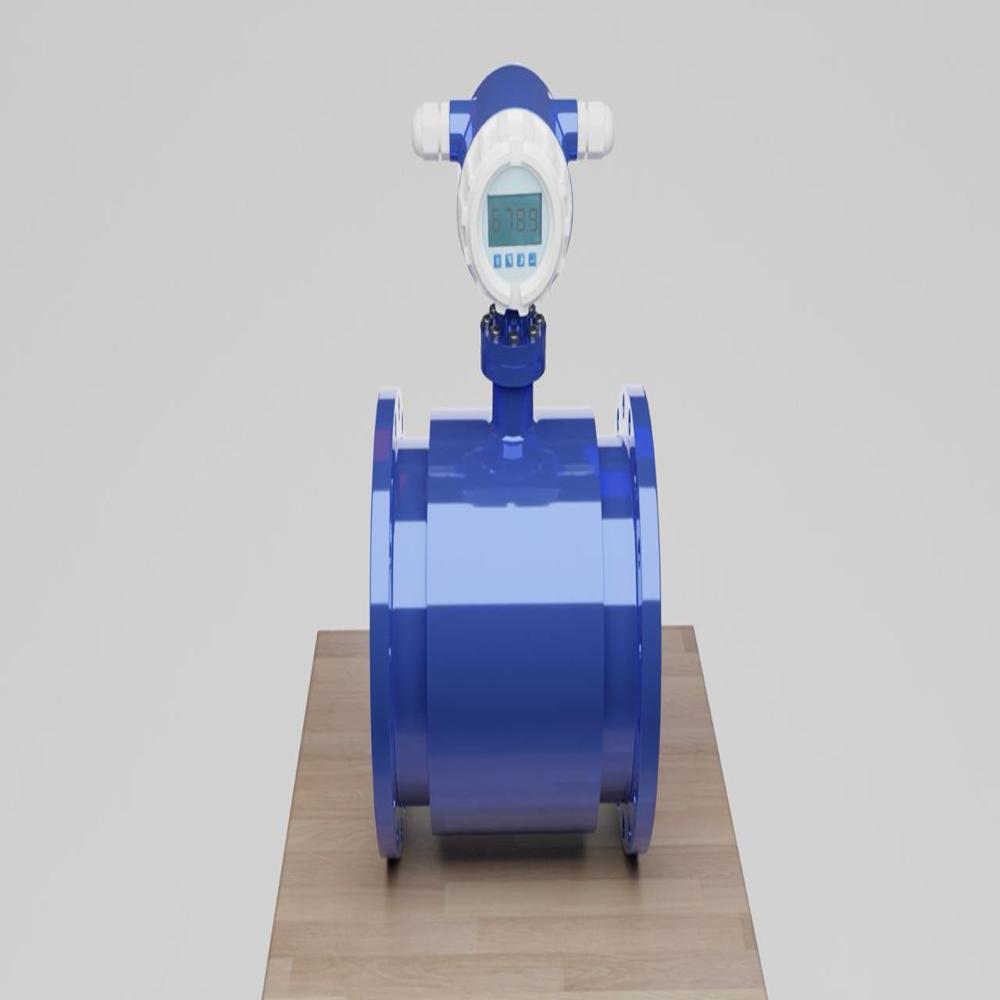

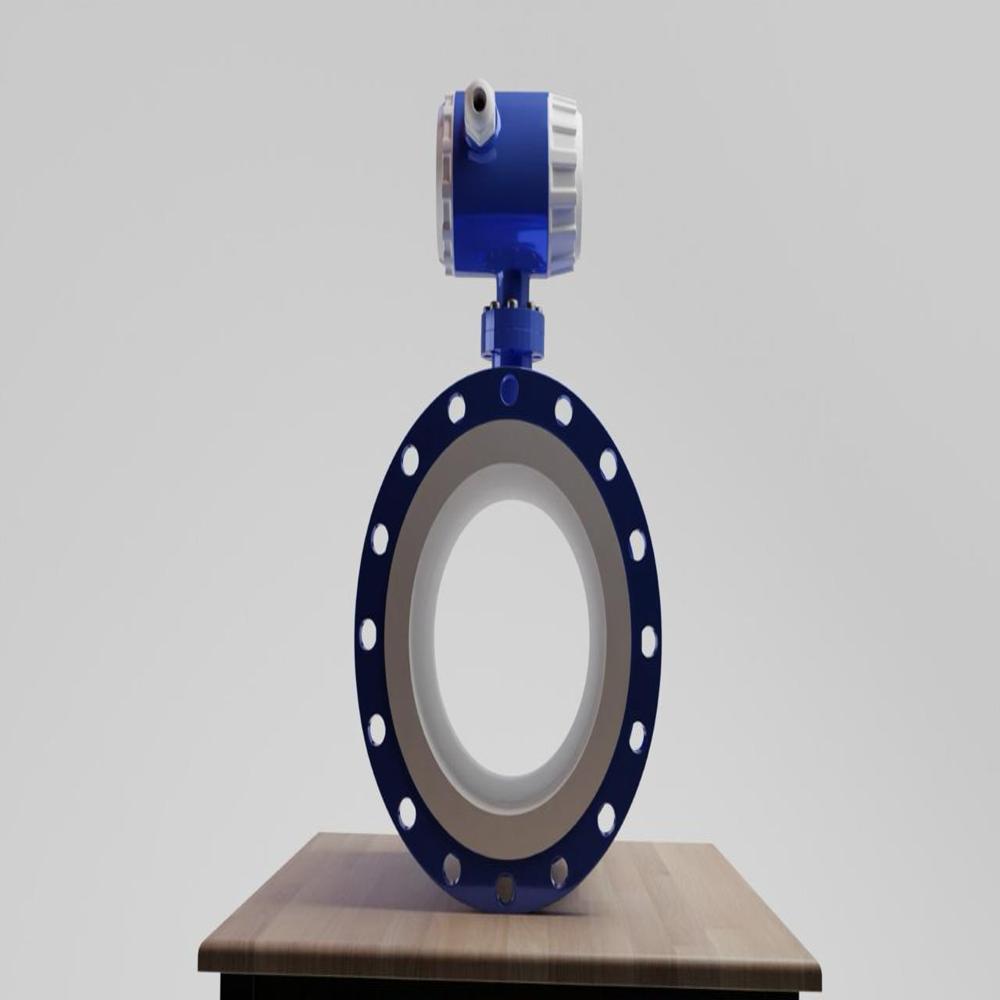

Magentics Flowmeters

Name: Magentics Flowmeters
Brand: HYKO TECHNOLOGIES
Price: 11050.0 INR
Availability: InStock

Price 11050.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Magentics Flowmeters Specification

Protection
IP65 / IP68

Temperature Range
0C to 80C

Diameter
15 mm to 300 mm

Frequency
50 Hz

Pressure Range
Max 10 Bar

Flow Rate
0.3 m/s to 10 m/s

Equipment Type
Magnetic Flowmeter

Measurement Range
As per model, up to 6000 m3/hr

Capacity
Custom as per pipeline

Application Media
Conductive Liquids

Current Range
4-20mA Output

Humidity %
Up to 95% RH

Sensor Type
Electromagnetic

Connectivity Type
4-20mA, RS485, Pulse

Resolution
0.001 m3/hr

Material
SS316, PTFE Lined

Power Supply
220V AC, 50 Hz

Power Consumption
10VA (max)

Accuracy
0.5% of Reading

Display Type
Digital LCD

Range
0.5 to 6000 m3/hr

Process Connection
Flanged, Wafer

Compliance
ISO 9001, CE certified

Ambient Temperature
-10C to 55C

Calibration
Factory calibrated & certified

Output Signal
Analog & Digital

Ingress Protection
Complies with IEC60529

Enclosure
Weatherproof/Fully sealed

Display Features
Backlit, configurable units

Mounting Type
Inline

Electrode Material
SS316L / Hastelloy / Titanium

Lining Material
PTFE, Hard Rubber, Neoprene

Magentics Flowmeters Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Magentics Flowmeters

Technical Specifications (Typical Range):

Size Range: DN10 to DN300 (1/2" to 12").
Accuracy: Typically 0.5% of flow rate, with high-accuracy options at 0.2%.
Minimum Conductivity: 5
S/cm (some models handle 0.01 $mu$S/cm).
Flow Velocity: 0.1 to 10 m/s (up to 15 m/s in some cases).
Power Supply: 85-265V AC (50/60Hz) or 11-40V DC, with battery-powered options available.
Output Signals: 4-20mA, Frequency/Pulse, RS485/Modbus, HART, PROFIBUS.
Protection Class: IP67 (NEMA 4X) to IP68 (Submersible).
Lining Materials: PTFE (150C), Rubber (85C), PFA, Polyurethane.
Electrode Materials: SS316L, Hastelloy C22, Titanium, Tantalum.
Process Connections: Flanged (ANSI 150#, PN10/16/40), Wafer, Sanitary (Tri-Clamp).

Precision Measurement for Industrial Applications

Our Magnetic Flowmeters are engineered to reliably measure the flow of conductive liquids with exceptional accuracy and longevity. Custom diameters (15 mm to 300 mm) and various process connections ensure seamless integration with your pipeline. Backed by ISO 9001 and CE certification, these meters promise exceptional quality and compliance with the latest safety and performance standards.

Versatile Materials and Robust Construction

Choose from SS316L, Hastelloy, or Titanium electrode materials and durable PTFE, Neoprene, or Hard Rubber linings for compatibility with diverse process fluids. The weatherproof and fully-sealed enclosure, along with high ingress protection (IP65/IP68), allows reliable operation even under challenging environmental conditions.

Advanced Features and Connectivity Options

Equipped with a backlit digital LCD display, configurable units, and multiple output types-including 4-20mA, RS485, and pulse-these flowmeters deliver real-time data and seamless integration with industrial control systems. The system is factory calibrated, ensuring plug-and-play setup and precise performance from day one.

FAQ's of Magentics Flowmeters:

Q: How do magnetic flowmeters operate and what liquids can they measure?

A: Magnetic flowmeters utilize electromagnetic induction to accurately measure the flow rate of conductive liquids. They are suitable for any application involving water, chemicals, slurries, or other conductive fluids, and are not recommended for non-conductive media such as oils or hydrocarbons.

Q: What are the benefits of having different electrode and lining materials available?

A: Offering SS316L, Hastelloy, and Titanium electrodes, as well as PTFE, Hard Rubber, and Neoprene linings, allows the flowmeter to withstand a wide variety of aggressive chemicals and process conditions, ensuring extended service life and resistance to corrosion and abrasion.

Q: When should I select a flanged versus wafer process connection?

A: Flanged connections offer robust sealing for higher-pressure or larger-diameter pipelines, while wafer connections provide a more compact, lighter solution suitable for limited space or lower pressure applications. The selection depends on your pipeline specifications and operational requirements.

Q: Where can these magnetic flowmeters be installed and used?

A: These flowmeters can be installed inline in pipelines within industrial plants, water treatment facilities, chemical factories, and other places requiring accurate measurement of conductive liquid flow. Their IP65/IP68 ingress protection allows installation even in challenging or outdoor environments.

Q: What is involved in setting up and using the magnetic flowmeter?

A: Installation involves securing the meter to your pipeline (flanged or wafer style), connecting the appropriate outputs (4-20mA, RS485, Pulse), and powering the unit with 220V AC, 50Hz. Factory calibration and a backlit LCD display simplify commissioning and ongoing operation.

Q: How does the digital LCD display benefit the user?

A: The backlit digital LCD display provides clear, real-time information on flow rate, totalized flow, and other important parameters in configurable units (m3/hr, L/min, etc.), making monitoring and diagnostics straightforward for operators.

Q: What compliance and safety standards do these flowmeters meet?

A: They are manufactured following ISO 9001 standards and are CE certified, ensuring adherence to international quality, safety, and reliability norms. The product is also built to comply with IEC60529 for ingress protection.
